STERILIZATION

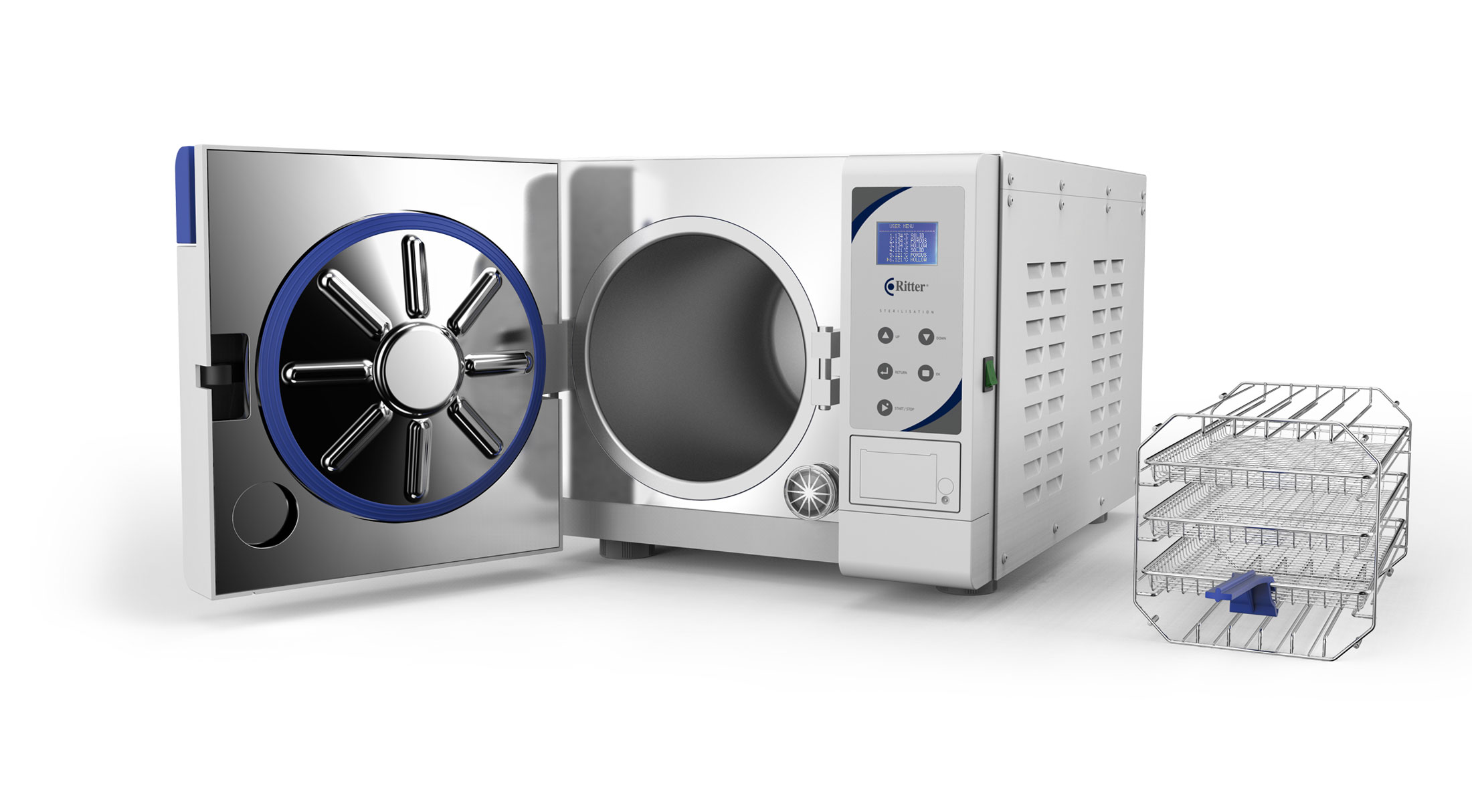

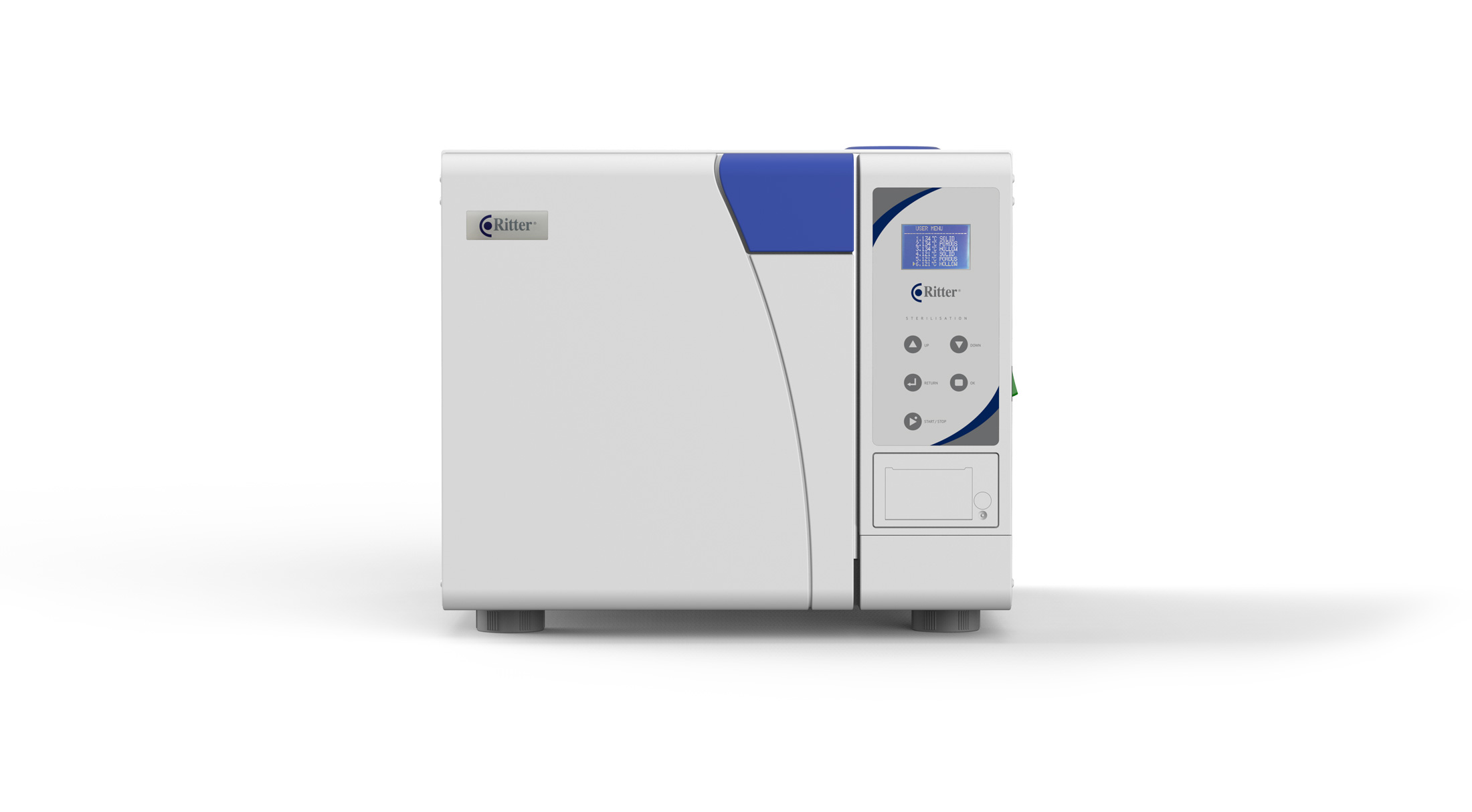

RITTER DENTAL AUTOCLAVE CB23
CLASS B
Reliable sterilization in accordance with the highest standards
Class B technology, including initial validation, safe and compliant—ready for immediate use.
Dries quickly & completely
Vacuum-assisted drying ensures that instruments are ready for immediate use.
Intuitive operation
LCD display and membrane keys for simple, clear, and reliable operation.
Automatic documentation

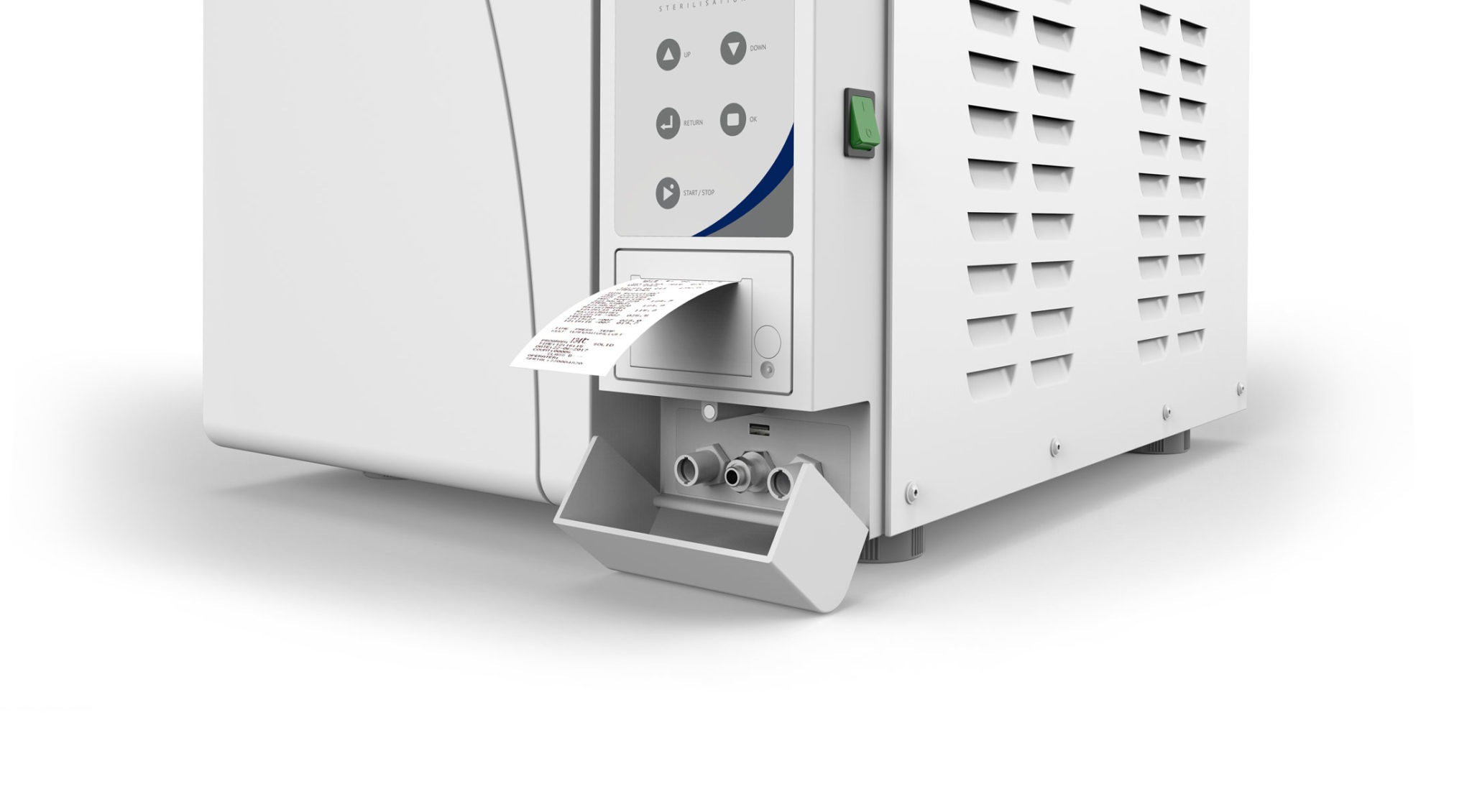

Save cycle data via USB or the built-in printer—audit-traceable.
Large chamber – plenty of space for instruments
Simplifies daily practice and reduces the number of cycles.
Chamber size: 23 liters, 250 x 450 mm
The Ritter „CleanTec“ series is the efficient method, providing fast sterilization and drying time for your instruments.
CleanTec autoclaves work with a fractionated pre- and post vacuum.
The deep vacuum is created by a high performance double stage vacuum pump. The deep post-vacuum ensures optimal drying of wrapped materials and large quantities of porous goods.
CleanTec stand-alone autoclaves dispose of a built-in water storage tank. They fully correspond to the requirements of “Class B”- autoclaves.
The Ritter CleanTec CB23 can be optionally connected to the tap water supply and drain. It features an internal printer for documentation. Chamber size: 23 liters.
Additional program cycles: 135 °C prions; clean process. The LCD display is available in multiple languages. It also offers password protection.
Dimensions: 505 x 425 x 650 mm (width x height x depth)
Ritter CleanTec was created to satisfy the needs of customers who demand:
- safety
- reliability
- simplicity
- all in one sterilization instrument
Sterilizable products:
- solid instruments
- hollow instruments
- wrapped instruments
- porous loads
Standard instruments
MOUTH MIRROR
TWEEZERS
CURETTES
EXTRACTION TOOLS
Packaged
AUTOCLAVE BAGS
STERILIZATION TRAY
Hollow-body instruments
TURBINES
CONTRA-ANGLES
HANDPIECES
SALIVA SUCTION
Textiles
SURGICAL GOWN
SURGICAL DRAPE
Technical Specifications
Dimensions: 505 x 425 x 650 mm (width x height x depth)
Weight (with empty tanks): 50 kg
Weight (with full tanks): 55 kg
Colour: RAL9002
Material: SUS304 Steel / FeP01 Steel (Cover)
Noise level at 1 m distance: 54 dBA
Noise level in front of the display: 63 dBA
Electrical specifications
Rated voltage: 230 V ~ 50/60 Hz
Rated input: 1950 W
Supply cable: (L 1.5 m) 2+1 x 1.5 mm2
Fuses: T10A
Insulation: Class I
Chamber specifications
Max. working pressure: 0.21 MPa (relative)
Max. working vacuum: -82 kPa (relative)
Max. vacuum (drying process): -94 kPa (relative)
Max. working temperature: 137 °C
Material: Stainless steel SUS 304
Dimensions: Ø x P 250 x 450 mm
Clean water tank + Dirty water tank specifications
Max. capacity: 4.5 l
Cycles per tankful: ~4
(before the min. level indicator lights up)
Material: Stainless steel
Bacterial filter data
Maximum diameter: 56 mm
Max. allowed filtering capacity: 0.3 μm
No. of cycles before replacement: ~159
Major features and characteristics
- Micro-computer control, touch-key.
- Automatic process-control in terms of water filling, pulse vacuum, heating, sterilization, steam exhaust and vacuum dryness.
- Pulsant final vacuum drying system ensures the best drying effects.
- Built-in steam generator and steam separator, in order to ensure the quality of the steam. An external steam source is not necessary.
- Equipped for instruments, instrument bags, dressings, rubber items.
- User-defined sterilization programs according to the customer’s needs.
- Liquid program optionally available.
- Bowie-Dick test and vacuum test programs.
- The 0.22 μm filter guarantees sterile air in the chamber preventing a recontamination.
- LCD-Display indicates temperature, time, pressure and cycle process.
- Automatic alarm control in case of errors and cycle completion.
- Internal printer included.
- 11 programs
