Ritter Ultimate Comfort
A smart practical solution
In no time a perfect Win-Win solution
Left and right swivable.
The left and right swivable unit can be switched from right hand use to left hand use very easily.
The patient chair is synchronized – available as electric version and has a 30° chair movement for easy access.
The unit has a memory-system
- spittoon position
- last position
- light off / light on
The water unit has a self-contained clean water system. The multifunctional foot pedal control system is easy to use and supports an excellent workflow.
The Ultimate Comfort is outstanding ergonomic and efficient for the daily use.
Patient chair.
- Electric chair movement for fast and quiet movements
- Ergonomic design for comfortable seating also during long treatments
- Broad space for dentist‘s legs
- High-quality leather upholstery
- Chair swivel 30° left/right
- 4 programmable chair positions, plus last position
- Auto return function : If the safety switch is activated, the chair automatically goes up for a few cm
- Safety switches
- Trendelenburg movement: Seat and backrest movement synchronized
- Left and right armrest
- Double-articulated headrest
The patient chair
in perfect position for you
and your patients.
Your patient chair can be adjusted
optimally for all treatment scenarios
between a lowest position of 400 mm
and a highest position of 800 mm.
(Distance between upholstery to floor)
Everyone has their favorite color
- we have the most beautiful.
The Ritter Ultimate Comfort colour scheme provides creative versatility to suit your style, and is accentuated by the bright white of the body of the device.
Ritter Ultimate Comfort
Dentist Elements
Easy to use and efficient treatments:
Two different versions are available depending on personal preference, allowing easy adjustment of the instruments.
S-Version, swinging hoses
- Tray support is available in standard version (see the picture above) and with a lower tray
- Pneumatic arm brake
- Up to 5 instruments
- Available in electric / pneumatic version
S-Version, swinging version
- Traytable available
CONTROL PANEL
- Control panel with X-ray viewer
- 5 programmable chair positions including rinsing position, exit position and emergency position
- Removable silicone base for easy cleaning and disinfection (S-version)
H-Version, hanging hoses
- Tray support is available in standard version (see the picture above) and with a lower tray
- Pneumatic arm brake
- Up to 5 instruments
H-Version, hanging version
- Traytable available
Ritter Ultimate Comfort
Assistant Element
- Integrated control panel
- Up to 4 instruments
- Small and large suction hoses
- 3F syringe
- Curing light
- Double jointed and adjustable arm movement
Ritter Ultimate Comfort
Operating Lights
EVA LED with switch / sensor
- Illuminance: 50.000 Lux
- Color temperatures: 5.700, 5.000, 4.000 or 2.700 Kelvin
- CRI >95, for improved color and light perception
- The light field is 19×10 cm at 70 cm distance
- Optional protective cover with patient mirror
- Control lamp – visual feedback of illumination strength and color temperature
Ritter Ultimate Comfort
Operating Lights
MAIA with Sensor
- Illuminance: 3.000-45.000 Lux
- Constant color temperature of 5.000 Kelvin
- Shadow-free illumination
- Removable, sterilizable handles
- Constant color intensity
Ritter Ultimate Comfort
Operating Lights
V2 LED Operating Lamp
- Illuminance: 8.000 to 30.000 Lux
- Yellow filter
- Sensor switch – light on/off by hand movement
- Low heat emission
- Precise illumination of the working area
Ritter Ultimate Comfort

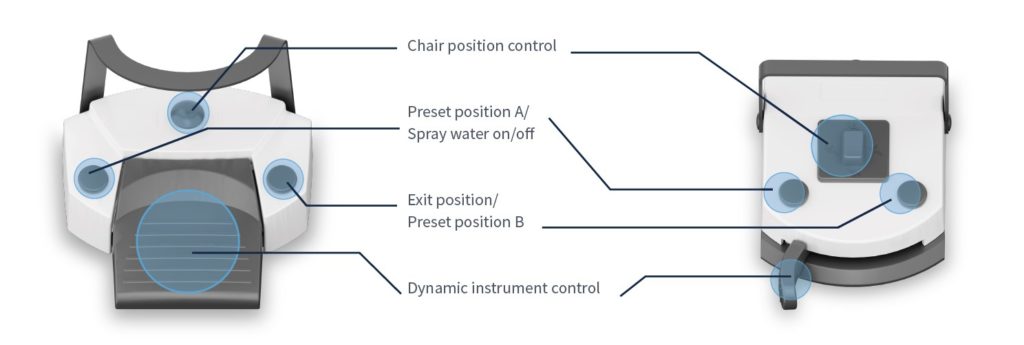

Foot Controller
Modern design for chair movement and instruments
- Large handle for easy repositioning
- Manual control of chair movements
Program control of chair movements
- Rinsing position/last treatment position
- Programmable chair position: A, B, Emergency
- Entry/exit position
Control of the instruments
- Speed/power control for the active instrument
- Individual spray water on/off mode for each instrument line
Buttons
- Spray water for instruments
- Chip blower function
Ritter Ultimate Comfort
Dental Stool
MobiloFlex 60
MobiloFlex 60 with footring
- Backrest with fixed position or dynamic movement
- Ergonomic and comfortable seat
- Symmetrical backrest
- Gas lift cylinder
- Chrome-plated base
- Five double castors for stability
- Color coordinated upholstery
- Available with or without foot ring
